Temperature and Humidity Monitoring Solutions

One Device, Many Metrics

The UbiBot WS1 has industrial-grade sensors that work seamlessly to give you accurate sensing of environmental conditions. The optional external temperature probe allows you to monitor liquids, soil and other harsh environments.

Temperature Sensor

Precision: ±0.3℃
Range: -20℃ to 60℃
(-4℉ to 140℉)

Humidity Sensor

Precision: ±3% RH
Range: 10% to 90% RH

Ambient Light Sensor

Precision: ±2%
Range: 0.01 to 83K lux

Vibration Index Sensor

Precision: 4mg
Range: -16 to 16g

External Temperature Sensor

Precision: ±0.5℃
Range: -55 to 125℃
(-67 to 257ºF)

The sensor precision might fluctuate slightly in actual usage because of environment condition, deployed position, etc. See user guide for detailed parameters.

⚠️The device is not waterproof. For outdoor use or indoor environment with a constant 90% or higher humidity, please use a waterproof case and connect an external probe.

A Revolutionary Cloud-Based Solution

The UbiBot WS1 can connect to the network using WiFi. It automatically synchronises its data to the UbiBot IoT Platform. This gives you secure access to your monitoring data from anywhere in the world via the website or our App.

Even If the Network Fails, the WS1 Won’t Let You Down

The UbiBot WS1 boasts a large onboard memory and continues to collect and store data even when the network is down. If the network ever fails, you will receive a notification. You can also download the stored data manually by connecting the recorder directly to your computer.

Stylish Design and Impressive Features

We are on a mission to revolutionise your environmental data sensing. WS1 is the most accurate WiFi sensor device and offers real-time alerts.

Features

WiFi connection
Keep track of historical data trends
Global access to your data
Multiple sensors work seamlessly together
Notifications when and where you want
Uses standard AA batteries

Specifications

WiFi: requires 2.4GHz (802.11 b/g/n), channels 1-13 network. (5GHz WiFi is NOT supported)

WiFi Security: supports OPEN, WEP, or WPA/WPA2 types

WiFi Channel Width: supports 20MHz or “Auto” setting

Compatibility: iOS 11+, Android 8.1+, or Windows 7+，or OS X v10.8+

Power Source: 2 x AA batteries / Micro USB (5V/2A)

Battery Life: 4-6 months*

Length: 2.56’’ (65mm)

Height: 2.56’’ (65mm)

Width: 0.65’’(1.651mm)

On-board memory: 300,000 sensing records

External probe: supports DS18B20 temperature probe（optional extra）

Weight: 32 ± 3g( without batteries)

Ports: 1 Mini USB, 1 Micro USB

Sensing Range: Temperature -4℉ to 140℉（-20℃ to 60℃), Humidity: 10% to 90%*

Device Setting: Supports minimum device sync interval (upload) is 1 minute, and minimum sensing interval is 1 minute (Temperature, Humidity, Light, External Probe and Battery Voltage).

Alert Types: Supports APP push notifications, email, sms text and phone call alerts. Alerts can be set on numeric-based sensor readings and network status (e.g. when connection is lost or batteries are low). All alerts are sent from the UbiBot Cloud.

*The quoted battery life was tested using VARTA industrial batteries under stable signal conditions with default synchronisation and sampling settings. For more details, please click here.

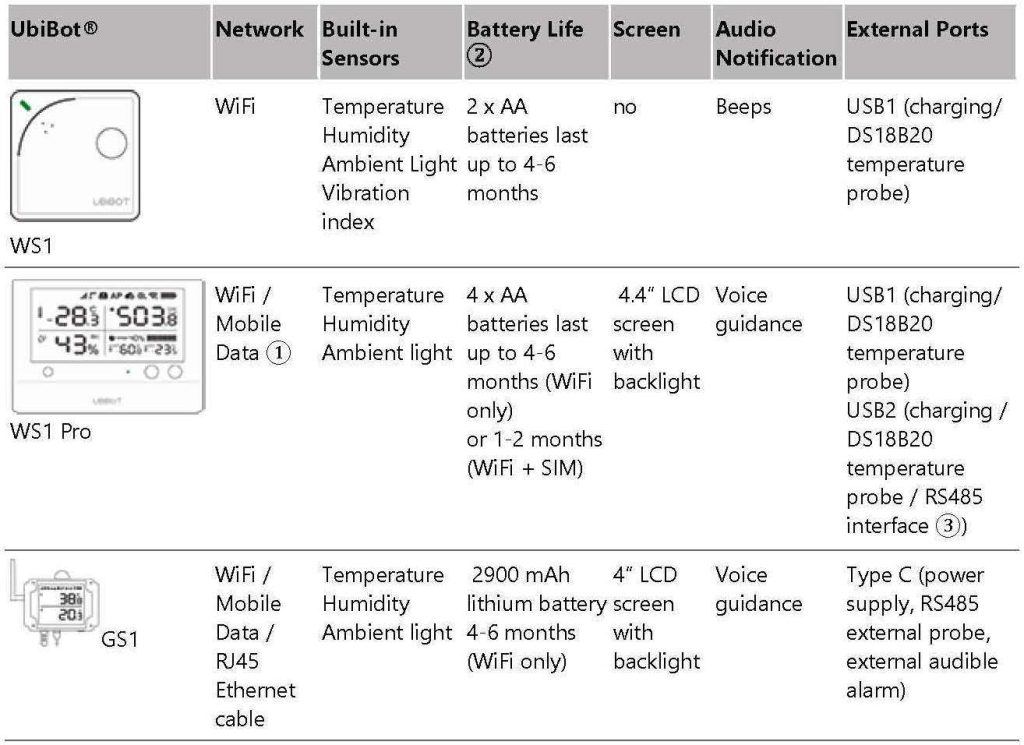

Compare UbiBot® Smart Sensor Devices

UbiBot now has three versions of the smart sensor for temperature and humidity monitoring. All of them are built on the same underlying IoT technology and integrated with Swiss sensors. Each generation has its own features especially designed to fit in different demands of users.

① Depending on the specific model purchased. ② The quoted battery life was tested using VARTA industrial batteries under stable signal conditions with default synchronisation and sampling settings. For more details, please click here. ③ Optional functions depending on selected model.

International Certificates

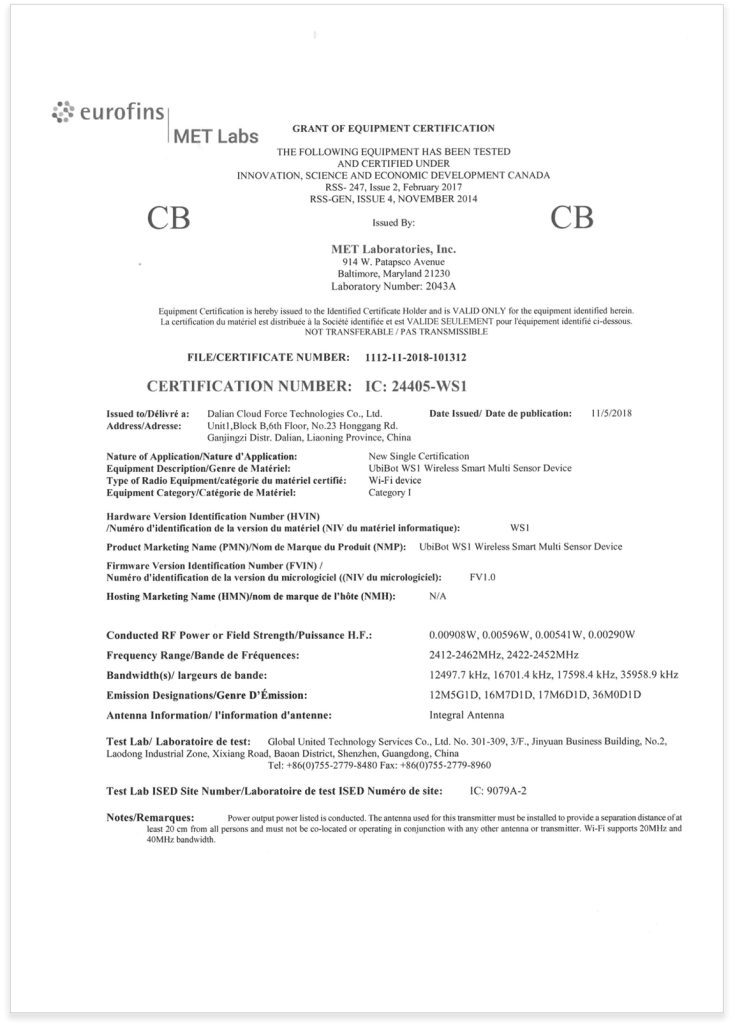

UbiBot devices have received multiple certifications, including CE, FCC, IC, RCM and RoHS. We also comply with all relevant standards for GSM and WiFi devices. Compliance with these regulations enables UbiBot devices to be sold in many major markets including the US and EU. We are actively seeking additional certifications in order to further widen our market.

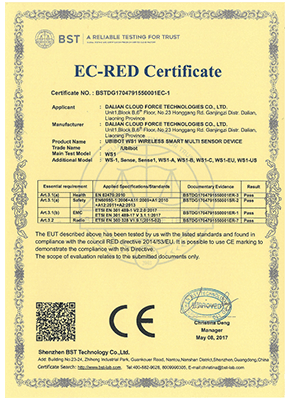

CE

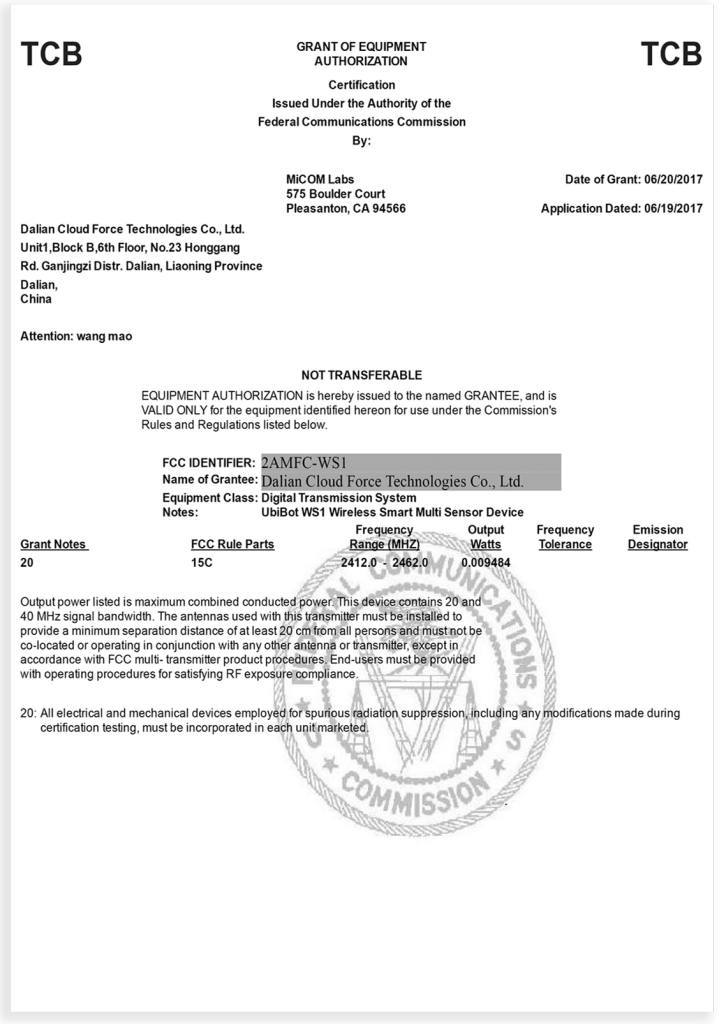

FCC

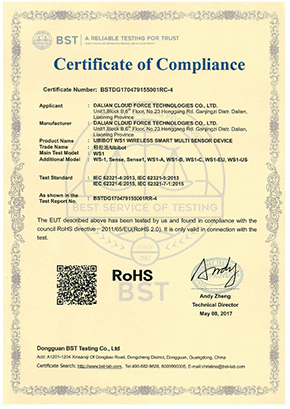

RoHS

IC

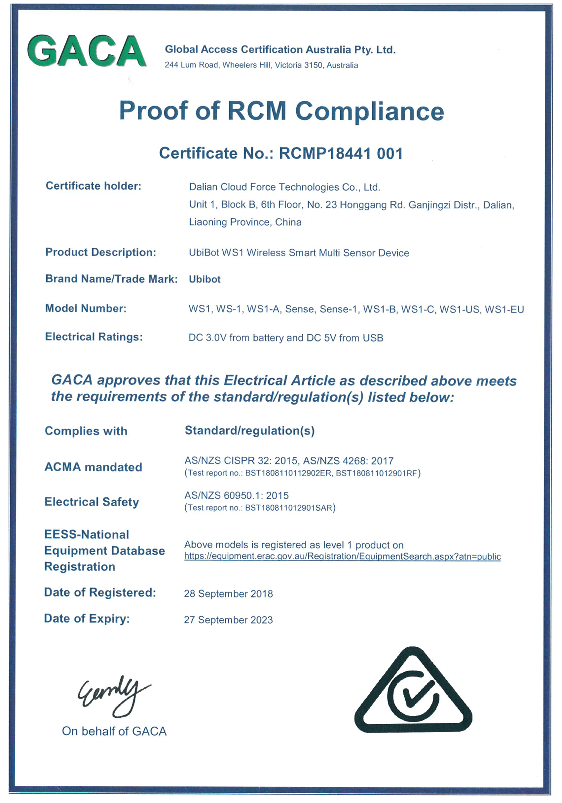

RCM

Unlimited Applications

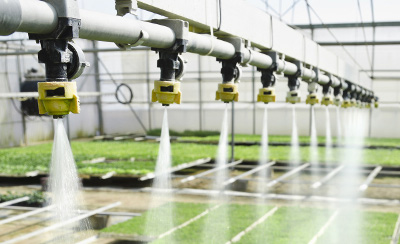

With its wireless monitoring capabilities and online access to the data, our multi-sensor WS1 has been used in numerous industries, including intelligent agriculture, inventory management, pharmaceutical storage and server room monitoring. Get peace of mind with a simple 3 minute setup.

Historic silk textiles are extremely precious and need to be carefully preserved. The slightest change in temperature or humidity could damage them. Museum curators can use the WS1 to monitor the environment remotely and will receive an alert if conditions ever change.

Wine is best kept at 50-70% relative humidity and needs a consistent cool temperature. By installing UbiBot® WS1 sensors in your wine cellar you are assured that you will be notified of any deviation from the ideal conditions.

The UbiBot WS1 gives museum curators and gallery owners peace of mind by providing real-time visibility of environmental conditions and configurable alerts when conditions go outside safe bounds.

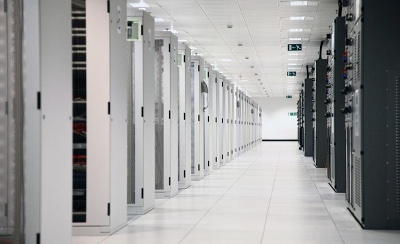

Servers are sensitive to extremes of heat and humidity. To keep them safe businesses can combine our wireless monitoring device with customised alerts to warn them when things are getting critical.

The UbiBot WS1 gives museum curators and gallery owners peace of mind by providing real-time visibility of environmental conditions and configurable alerts when conditions go outside safe bounds.

About Victorock Kenya Limited

Victorock is the leading Ubibot partner and dealers of Ubibot Cloud Based-IoT Platform in Nairobi Kenya. We also ship to all East African countries, namely: Uganda, Tanzania, Somalia, Ethiopia, South Sudan, Burundi and Rwanda. We also offer services such as Ubibot Cloud Based-IoT Platform installation, configuration, troubleshooting and maintenance. Contact us today for Ubibot temperature, humidity and monitoring sensors.
